In the rapidly evolving mobility sector, which demands newfound levels of performance,
efficiency, configurability, economics and supply chain resiliency- OE’s modular tunable axial flux motor delivers.
Solving obstacles and speeding adoption of PHEV/EV, including passenger vehicles, fleets, electric transit buses, shuttles, and vocational vehicles.

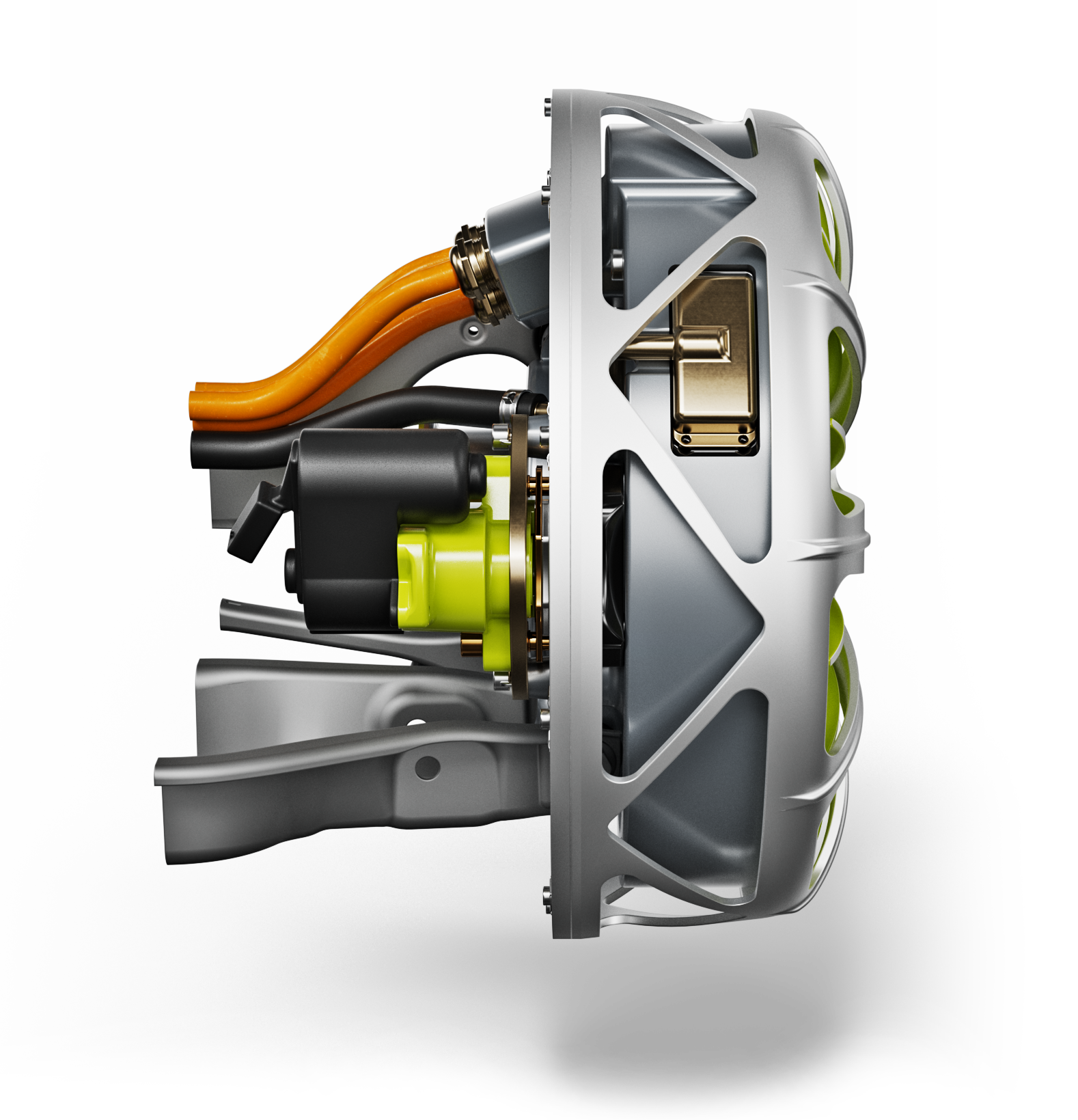

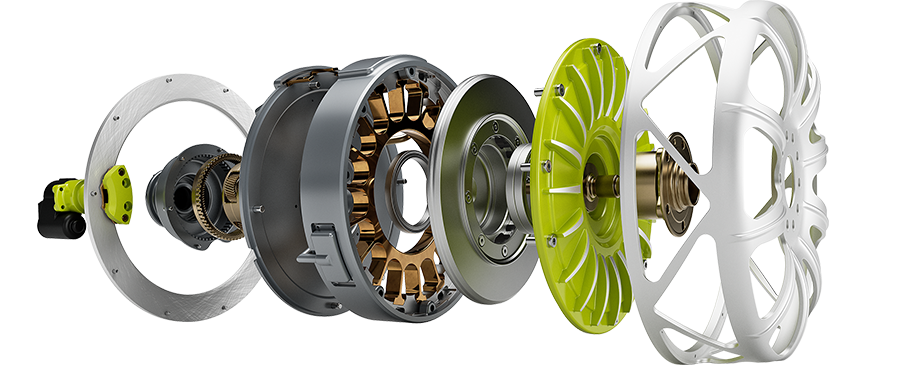

OE HaloDrive Modular Tunable Axial Flux Motors configured for in-wheel drive applications are a revolutionary advancement in motor vehicle lightweighting and drivetrain simplicity. Incorporating a highly advanced, ultra-light disc brake, a range of optional gear ratios to produce unrivaled torque per kilogram, and usage of cartridge-type wheel bearings drawn from OEM specifications, no other in-wheel motor compares. Whether the application is a hybrid or battery electric passenger car, commercial vehicle, people mover, or autonomous vehicle, the benefits of Orbis Electric’s patented innovation are vast.
Key Features
• Highest Torque Density per KG
• Torque Range 1560 Nm- 5500 Nm (per Motor)
• Integrated Disc Brake with Electronic Parking Brake
• 18” Wheels or Larger
• Assembly Line Ready
• No Changes to Control Arms
• Minimal Wheel Offset Change
• Factory Cartridge Wheel Bearings
• True Torque Vectoring
• Non Neodymium Magnets Available
• Direct Drive & Through Shaft Drive Available
• OEM Approved for Serial Production

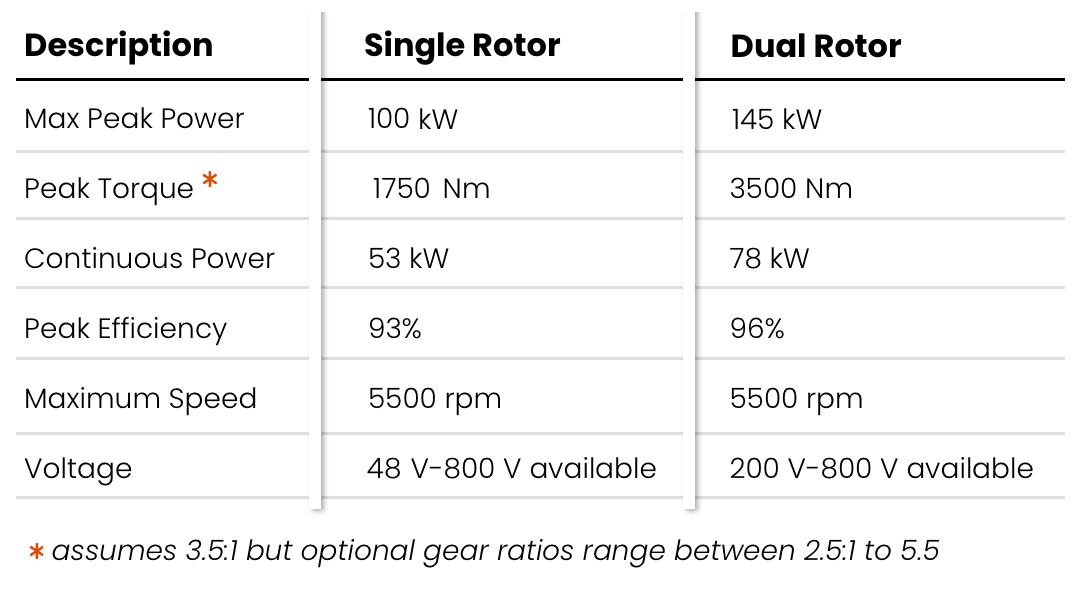

HaloDrive In-Wheel Axial Flux Motor Specifications
